Carbide Grooving Insert – GBA43L200-100R PR905 Szybka dostawa

Opis

Opis:

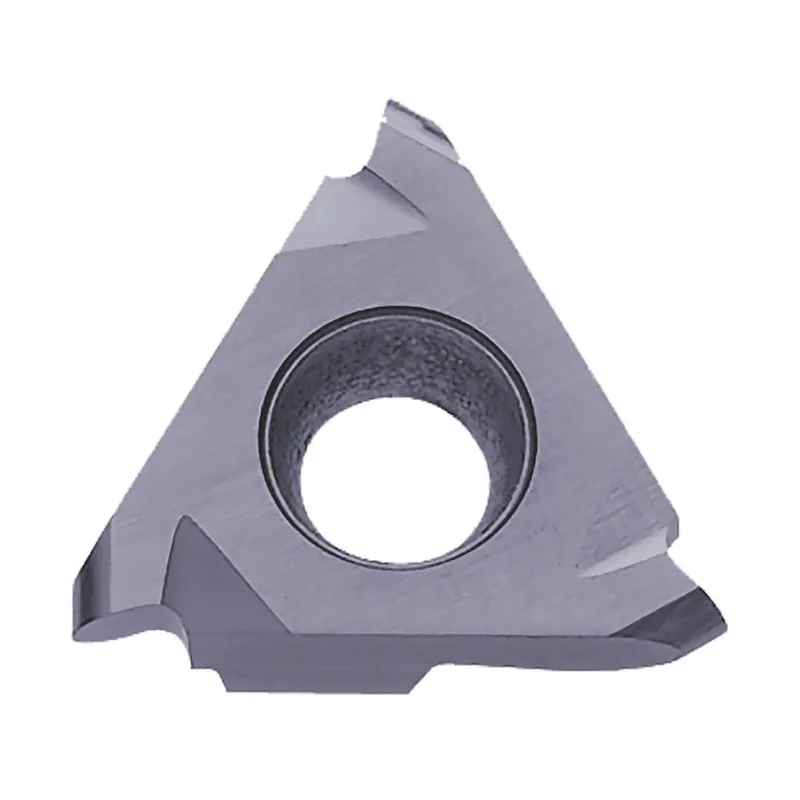

Carbide Grooving Insert GBA43L200-100R PR905

Cecha szcz.:

ANR (GTC – Clearance angle flank right hand): 0 Degree
AN (GTC – Clearance angle major): 0 Degree
WT (GTC – Weight of item): 0.009 kg
PFS (GTC – Profile form): 1
REL (GTC – Corner radius left hand): 1 mm
RER (GTC – Corner radius right hand): 1 mm
CW (GTC – Cutting width): 2 mm
CEDC (GTC – Flute count): 3
ANL (GTC – Clearance angle flank left hand): 4 Degree
INSL (GTC – Insert length): 22 mm
Grooving width: 2,00
CECC (GTC – Cutting edge condition code): E
Description: GBA
HAND (GTC – Insert hand): L
Grade: PR905
COATING (GTC – Coating): PVD COATING
TCE (GTC – Tipped cutting edge code): S
