Carbide Grooving Insert – TKR1.6 PR930 Dostępne od ręki

Opis

Opis:

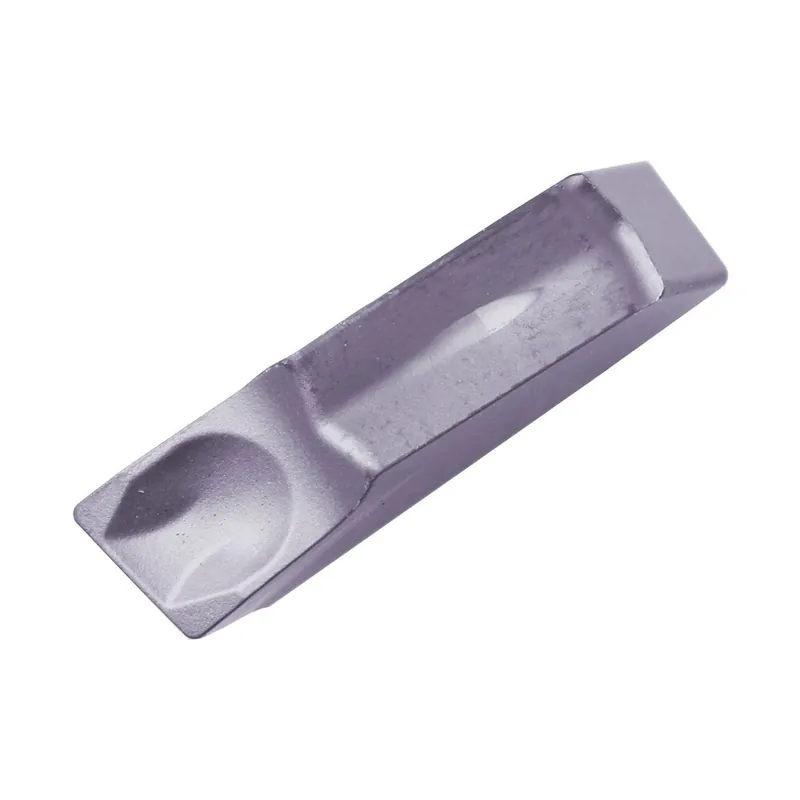

Carbide Grooving Insert TKR1.6 PR930

Cecha szcz.:

WT (GTC – Weight of item): 0.001 kg
REL (GTC – Corner radius left hand): 0.15 mm
RER (GTC – Corner radius right hand): 0.15 mm
CEDC (GTC – Flute count): 1
CW (GTC – Cutting width): 1.6 mm
PFS (GTC – Profile form): 2
S (GTC – Insert thickness): 3.7 mm
ANR (GTC – Clearance angle flank right hand): 5.5 Degree
ANL (GTC – Clearance angle flank left hand): 5.5 Degree
S1 (GTC – Insert thickness total): 5.8 mm
PSIRL (GTC – Cutting edge angle major left hand): 8 Degree
INSL (GTC – Insert length): 8.4 mm
AN (GTC – Clearance angle major): 8.5 Degree
Grooving width: 1,60
CECC (GTC – Cutting edge condition code): F
Grade: PR930
COATING (GTC – Coating): PVD COATING
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
Description: TK
