Carbide Milling Insert – SPET10T308EL-SB PR0725 Kup online

Opis

Opis:

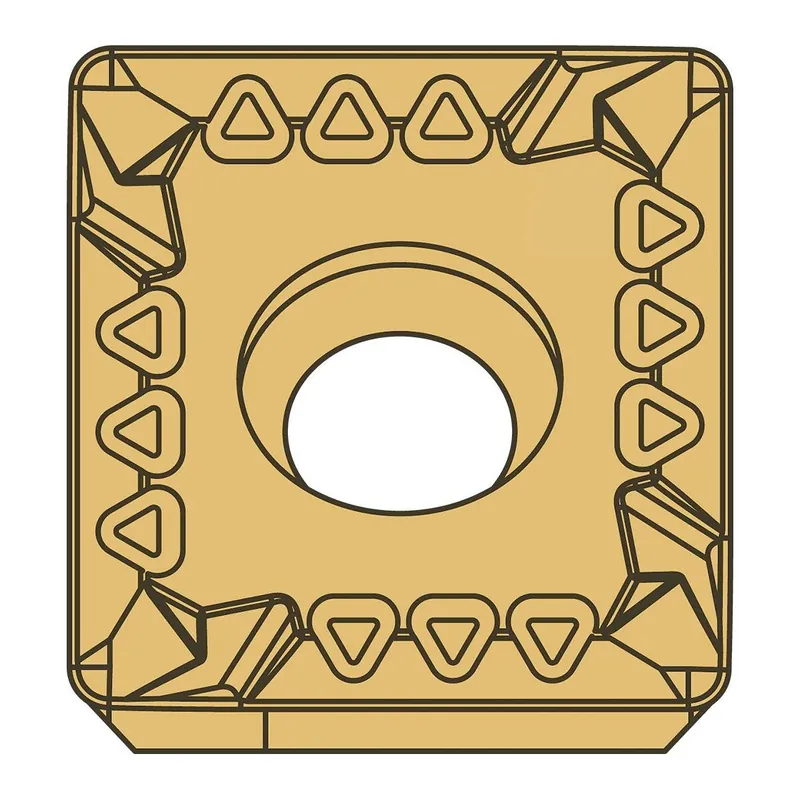

Carbide Milling Insert SPET10T308EL-SB PR0725

Cecha szcz.:

RE (GTC – Corner radius): 0.8 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.97 mm
Corner radius/chamfer: 8
IC (GTC – Inscribed circle diameter): 10 mm
L (GTC – Cutting edge length): 10 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 90 Degree
Size: 10T3
TC (GTC – Tolerance class insert): E
HAND (GTC – Insert hand): L
Grade: PR0725
Chip breaker: SB
Description: SPET
