Carbide Turning Insert – CNGU070302MFR-F PR1225 Niska cena

Opis

Opis:

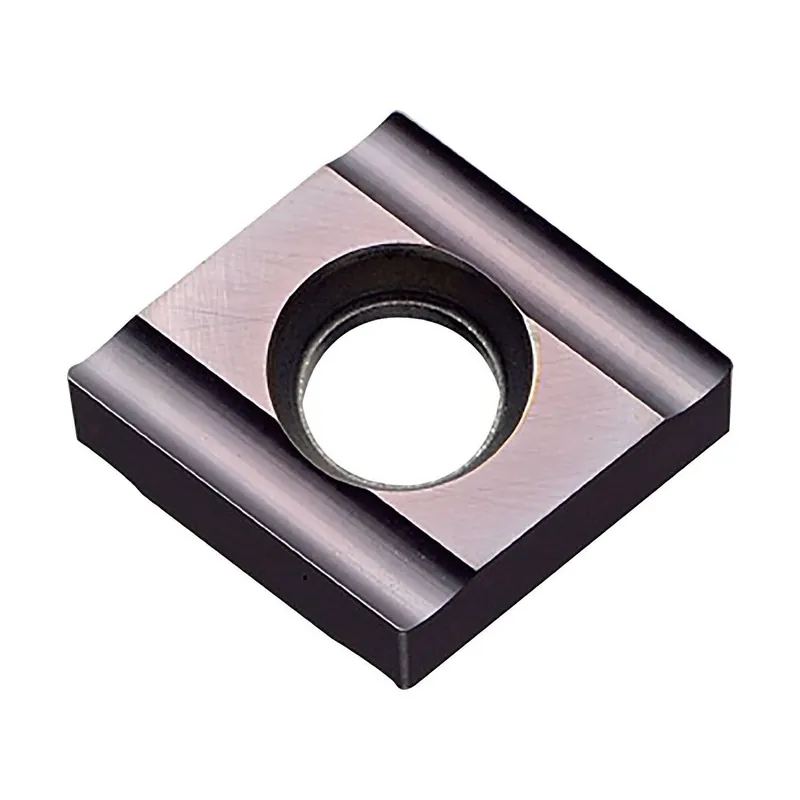

Carbide Turning Insert CNGU070302MFR-F PR1225

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
LE (GTC – Cutting edge effective length): 2.8 mm
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.18 mm
IC (GTC – Inscribed circle diameter): 7.5 mm
L (GTC – Cutting edge length): 7.615 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 703
Description: CNGU
TC (GTC – Tolerance class insert): G
COATING (GTC – Coating): MEGACOAT
Chip breaker: MFR-F
Grade: PR1225
HAND (GTC – Insert hand): R
