Carbide Turning Insert – JCGT030101L-F PR930 Ostatnie sztuki

Opis

Opis:

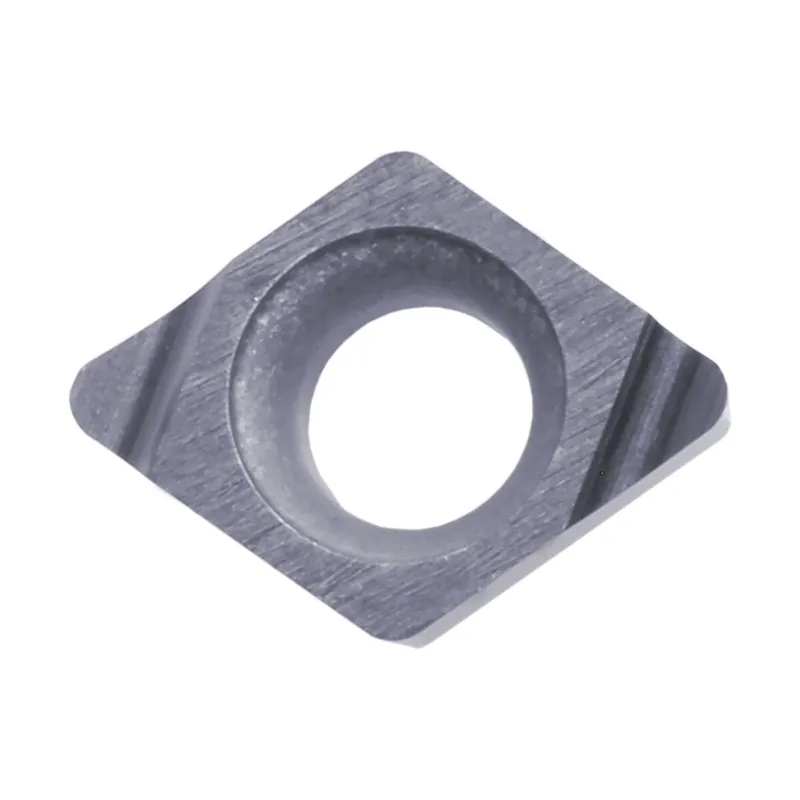

Carbide Turning Insert JCGT030101L-F PR930

Cecha szcz.:

RE (GTC – Corner radius): 0.1 mm
Corner radius (RE): 1
S (GTC – Insert thickness): 1.4 mm
LE (GTC – Cutting edge effective length): 1.5 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 3.5 mm
L (GTC – Cutting edge length): 3.725 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 70 Degree
Size: 301
Chip breaker: F
TC (GTC – Tolerance class insert): G
Description: JCGT
HAND (GTC – Insert hand): L
Grade: PR930
COATING (GTC – Coating): PVD Coated Carbide
