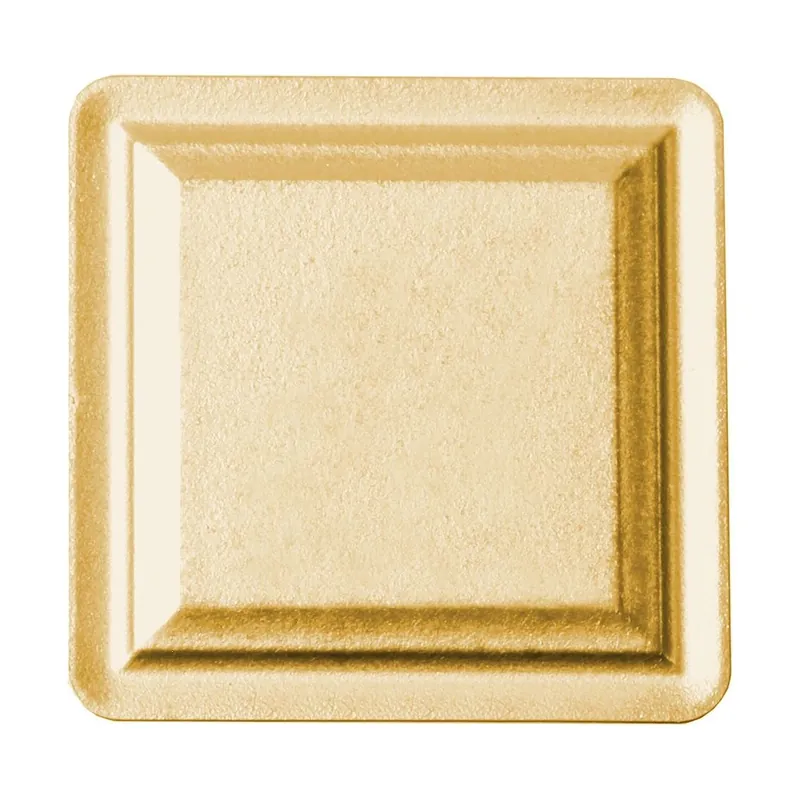

Carbide Turning Insert – SPMR090304 CA6525 Hit sprzedaży

Opis

Opis:

Carbide Turning Insert SPMR090304 CA6525

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 1
S (GTC – Insert thickness): 3.18 mm
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 9.525 mm
L (GTC – Cutting edge length): 9.525 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 90 Degree
Size: 903
Grade: CA6525
COATING (GTC – Coating): CVD Coated Carbide
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Description: SPMR
