Carbide Turning Insert – WBMT060102R-DP PR930 Popularny

Opis

Opis:

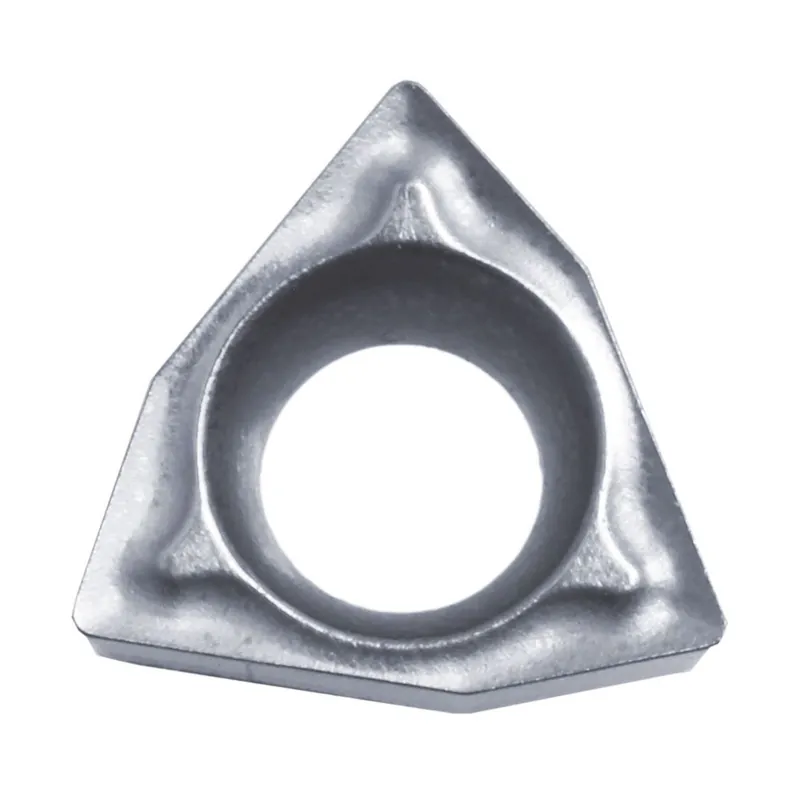

Carbide Turning Insert WBMT060102R-DP PR930

Cecha szcz.:

RE (GTC – Corner radius): 0.2 mm
S (GTC – Insert thickness): 1.59 mm
Corner radius (RE): 2
L (GTC – Cutting edge length): 2.716 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 3.97 mm
AN (GTC – Clearance angle major): 5 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 601
Chip breaker: DP
TC (GTC – Tolerance class insert): M
Grade: PR930
COATING (GTC – Coating): PVD Coated Carbide
HAND (GTC – Insert hand): R
Description: WBMT
