Darmowy zwrot Carbide Turning Insert – DCET0702003L-FSF PR930

Opis

Opis:

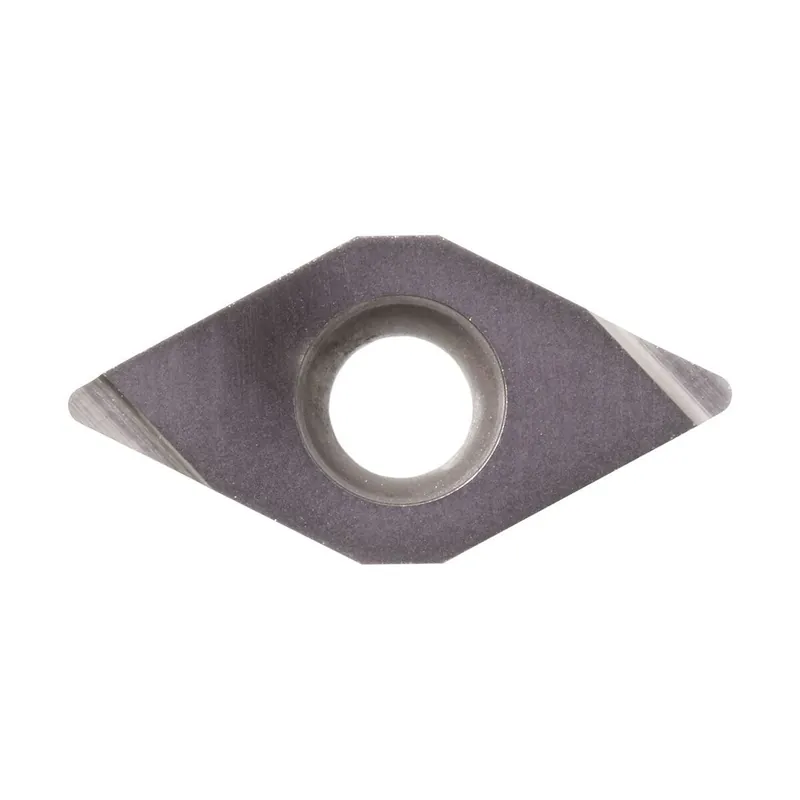

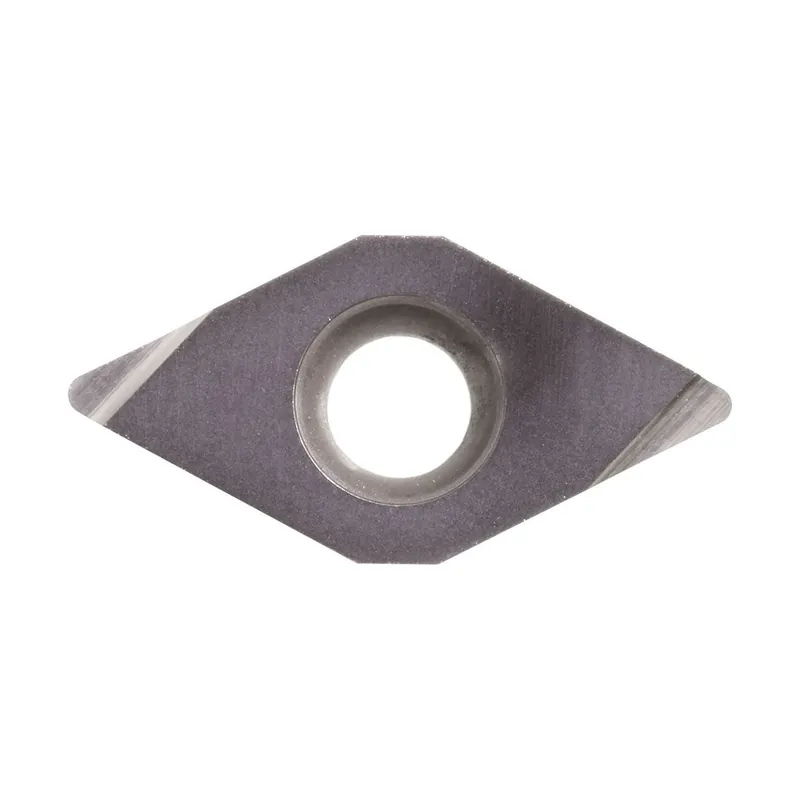

Carbide Turning Insert DCET0702003L-FSF PR930

Cecha szcz.:

Corner radius (RE): 0
RE (GTC – Corner radius): 0.03 mm
S (GTC – Insert thickness): 2.38 mm
LE (GTC – Cutting edge effective length): 2.8 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 6.35 mm
AN (GTC – Clearance angle major): 7 Degree
L (GTC – Cutting edge length): 7.752 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 702
Description: DCET
TC (GTC – Tolerance class insert): E
HAND (GTC – Insert hand): L
Chip breaker: L-FSF
Grade: PR930
COATING (GTC – Coating): PVD Coated Carbide
