Do wyczerpania zapasów PCD Turning Insert – TPGB080204 KPD010

Opis

Opis:

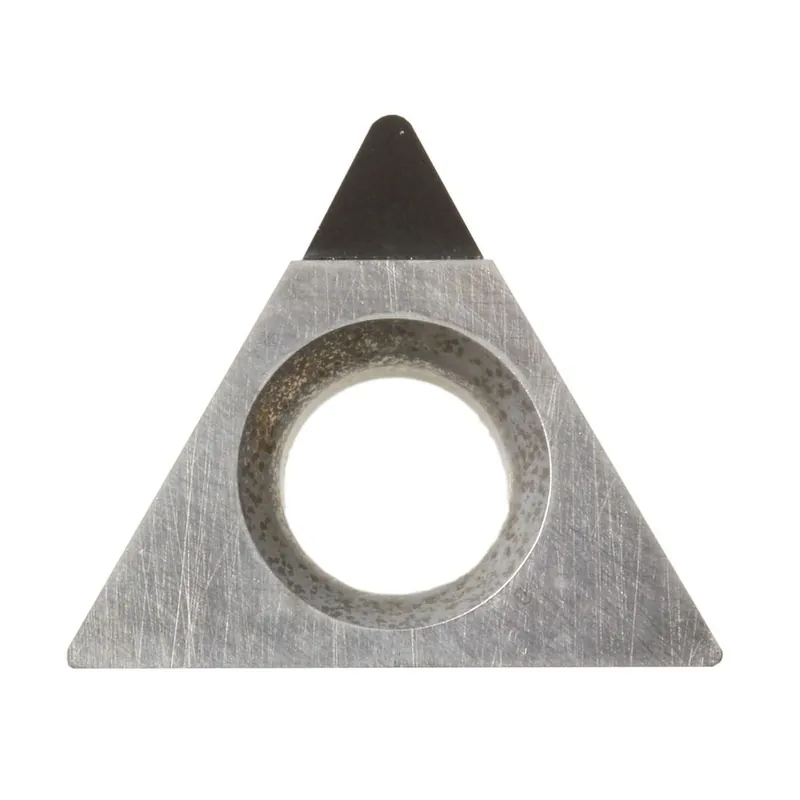

PCD Turning Insert TPGB080204 KPD010

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
S (GTC – Insert thickness): 2.38 mm
LE (GTC – Cutting edge effective length): 2.4 mm
Corner radius (RE): 4
IFS (GTC – Insert mounting style code): 4
IC (GTC – Inscribed circle diameter): 4.76 mm
L (GTC – Cutting edge length): 8.244 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 60 Degree
Size: 802
TCE (GTC – Tipped cutting edge code): A
TC (GTC – Tolerance class insert): G
Grade: KPD010
HAND (GTC – Insert hand): N
Description: TPGB
