Drilling Toolholder – SS10-DRC080M-3 Bezpieczne zakupy

Opis

Opis:

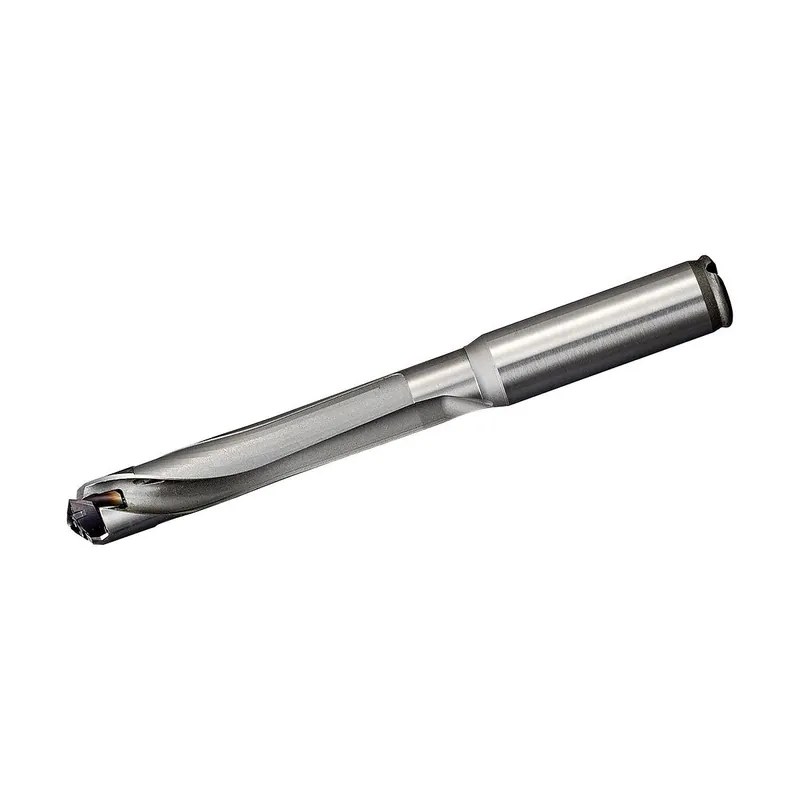

Drilling Toolholder SS10-DRC080M-3

Cecha szcz.:

WT (GTC – Weight of item): 0.029 kg
CNSC (GTC – Coolant entry style code): 1
NOF (GTC – Cutting edge count): 2
CXSC (GTC – Coolant exit style code): 3
BD (GTC – Body diameter 1st step): 7.6 mm
DC (GTC – Cutting diameter minimum): 7.94 mm
DCCTX (GTC – Cutting diameter 1st step maximum): 8.49 mm
DCON (GTC – Connection diameter machine side): 10 mm
Drilling depth (LU): 25
LU (GTC – Usable length): 25.5 mm
OHX (GTC – Protruding length): 39 mm
LS (GTC – Shank length): 40 mm
Total length (OAL): 79
OAL (GTC – Overall length): 79 mm
CZCMS (GTC – Connection size code machine side): 100
SIG (GTC – Point angle 1st step): 140 Degree
Shank diameter (DCON): 10,0
Drilling depth (Rdd): 3XD
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h6
Diameter (DC): ø7,94-8,49
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
Internal coolant: Yes
