Kup online PCD Turning Insert – TPGN160304NE KPD001

Opis

Opis:

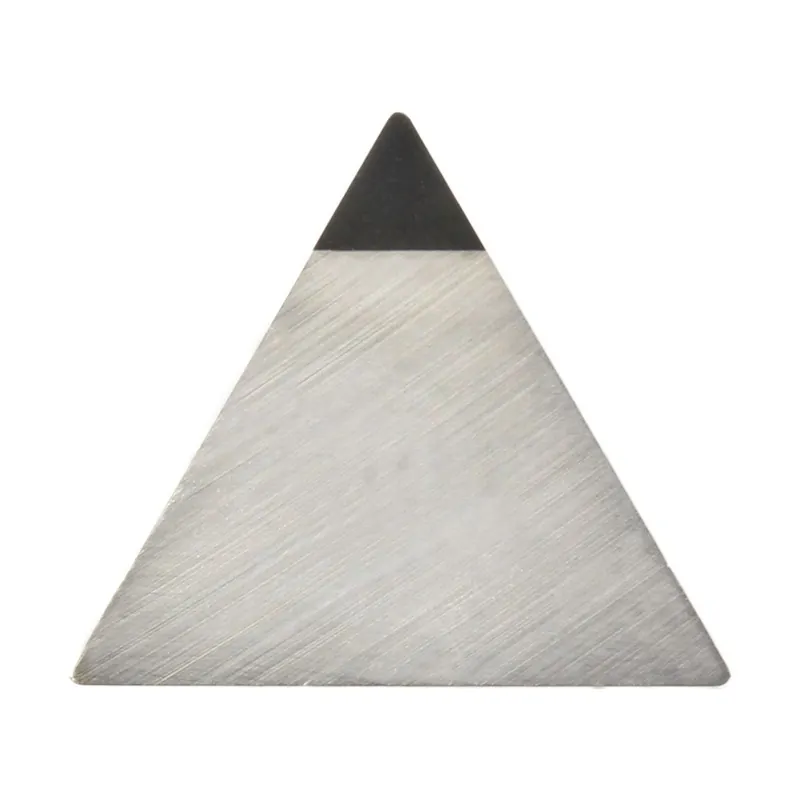

PCD Turning Insert TPGN160304NE KPD001

Cecha szcz.:

RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 1
S (GTC – Insert thickness): 3.18 mm
LE (GTC – Cutting edge effective length): 3.2 mm
Corner radius (RE): 4
IC (GTC – Inscribed circle diameter): 9.525 mm
AN (GTC – Clearance angle major): 11 Degree
L (GTC – Cutting edge length): 16.498 mm
EPSR (GTC – Insert included angle): 60 Degree
Size: 1603
TCE (GTC – Tipped cutting edge code): A
TC (GTC – Tolerance class insert): G
Grade: KPD001
HAND (GTC – Insert hand): N
Chip breaker: NE
Description: TPGN
