Milling Toolholder – DMC316H Cena promocyjna

Opis

Opis:

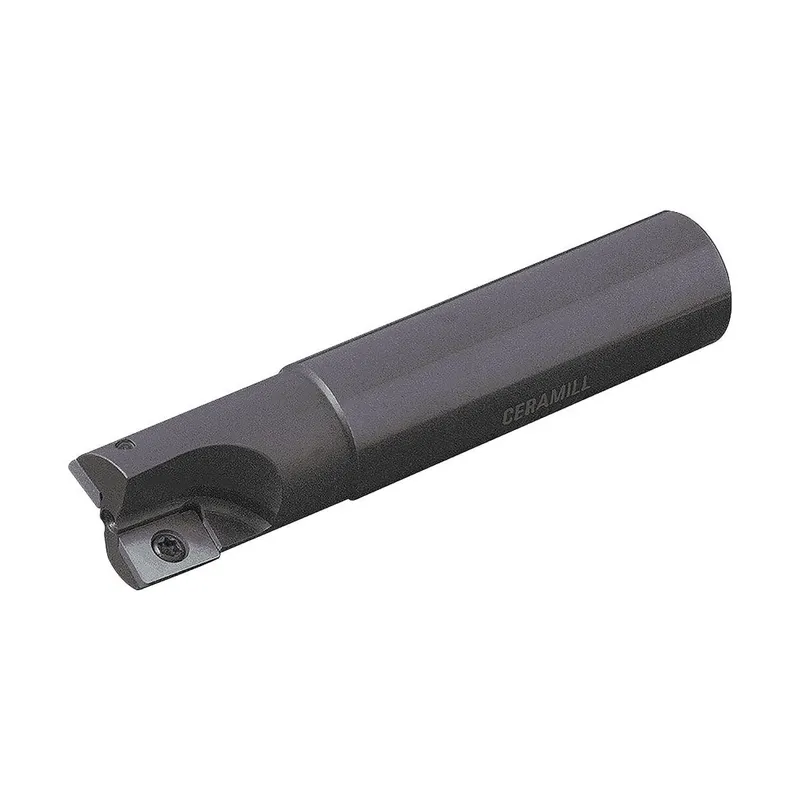

Milling Toolholder DMC316H

Cecha szcz.:

CNSC (GTC – Coolant entry style code): 0
CXSC (GTC – Coolant exit style code): 0
WT (GTC – Weight of item): 0.172 kg
RE (GTC – Corner radius, Pos. A): 0.8 mm
Number of inserts: 1
ZEFF (GTC – Face effective cutting edge count): 1
ZEFP (GTC – Peripheral effective cutting edge count): 1
S (GTC – Insert thickness, Pos. A): 3.18 mm
IC (GTC – Inscribed circle diameter, Pos. A): 9.525 mm
W1 (GTC – Insert width, Pos. A): 9.525 mm
APMX (GTC – Depth of cut maximum): 14 mm
Insert size: 15
AN (GTC – Clearance angle major, Pos. A): 15 Degree
BD (GTC – Body diameter): 15 mm
L (GTC – Cutting edge length, Pos. A): 15 mm
Shank diameter (DCON): 16
DC (GTC – Cutting diameter): 16 mm
DCON (GTC – Connection diameter machine side): 16 mm
LU (GTC – Usable length): 22 mm
OHX (GTC – Protruding length): 35 mm
LS (GTC – Shank length): 60 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 86 Degree
Cutting angle: 90
Total length (OAL): 90
KAPR (GTC – Tool cutting edge angle): 90 Degree
LF (GTC – Functional length): 90 mm
OAL (GTC – Overall length): 90 mm
CZCMS (GTC – Connection size code machine side): 160
Recess (LDN): 30,0
Shank type: Cylindrical
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h7
Internal coolant: No
Diameter (DC): ø16
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
