Milling Toolholder – MEY40-S32 Hit sprzedaży

Opis

Opis:

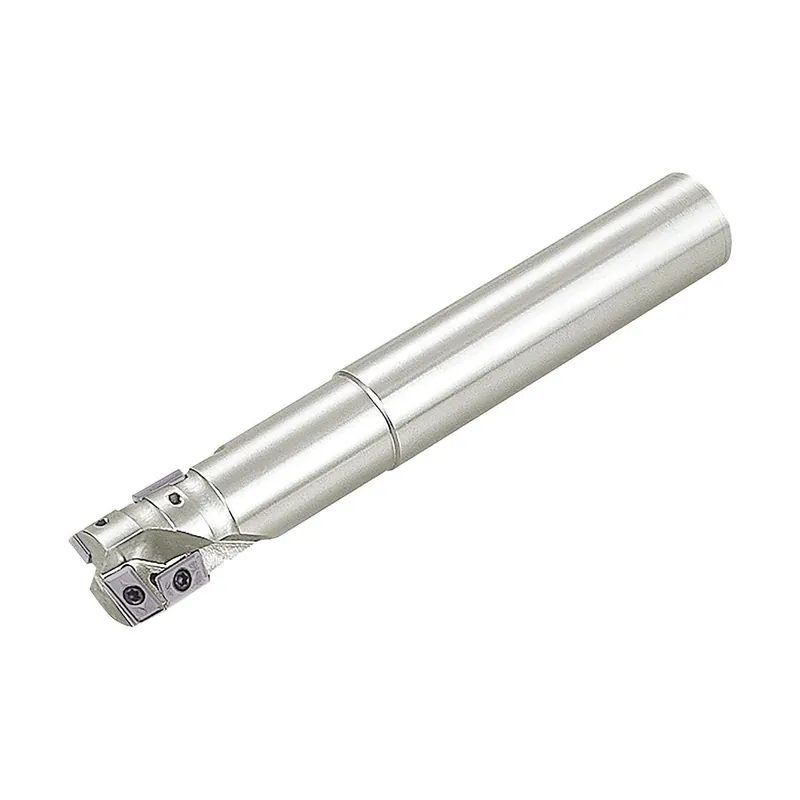

Milling Toolholder MEY40-S32

Cecha szcz.:

CNSC (GTC – Coolant entry style code): 0
CXSC (GTC – Coolant exit style code): 0
RE (GTC – Corner radius, Pos. A): 0.8 mm
WT (GTC – Weight of item): 0.995 kg
ZEFF (GTC – Face effective cutting edge count): 2
ZEFP (GTC – Peripheral effective cutting edge count): 2
S (GTC – Insert thickness, Pos. A): 3.85 mm
Number of inserts: 7
IC (GTC – Inscribed circle diameter, Pos. A): 8.36 mm
L (GTC – Cutting edge length, Pos. A): 13.2 mm
AN (GTC – Clearance angle major, Pos. A): 17 Degree
Shank diameter (DCON): 32
DCON (GTC – Connection diameter machine side): 32 mm
BD (GTC – Body diameter): 39 mm
DC (GTC – Cutting diameter): 40 mm
APMX (GTC – Depth of cut maximum): 42 mm
LU (GTC – Usable length): 50 mm
OHX (GTC – Protruding length): 60 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 77 Degree
KAPR (GTC – Tool cutting edge angle): 90 Degree
LS (GTC – Shank length): 105 mm
Total length (OAL): 160
LF (GTC – Functional length): 160 mm
OAL (GTC – Overall length): 160 mm
CZCMS (GTC – Connection size code machine side): 320
Recess (LDN): 55,0
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h7
MIID (GTC – Master insert identification, position B): JOMT13T308ER-D
Internal coolant: No
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
