Nie przegap Drilling Toolholder – S20-DRZ135405-05

Opis

Opis:

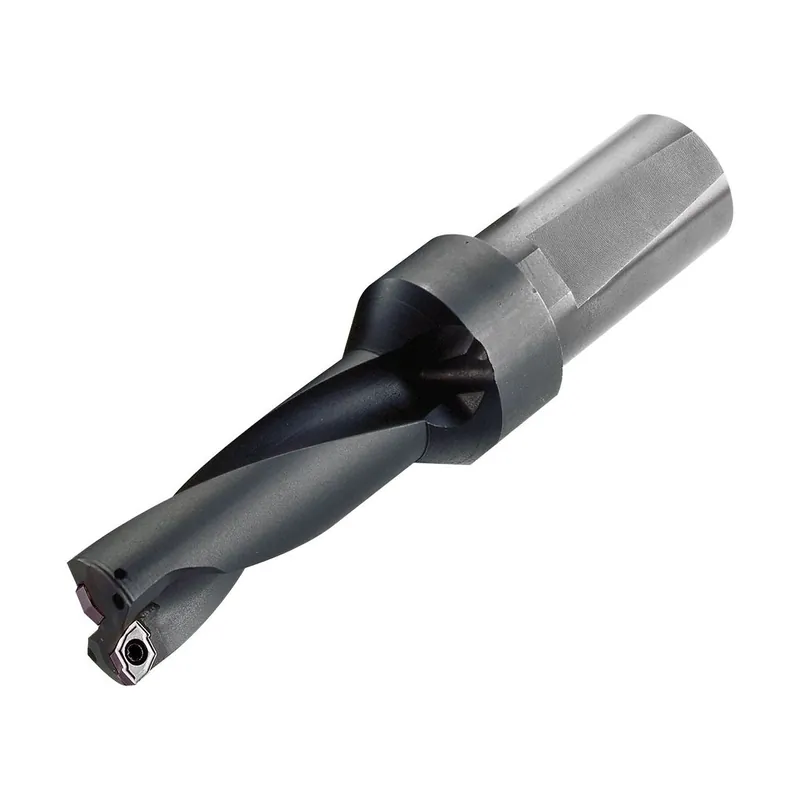

Drilling Toolholder S20-DRZ135405-05

Cecha szcz.:

WT (GTC – Weight of item): 0.215 kg
RE (GTC – Corner radius, Pos. B): 0.3 mm
CNSC (GTC – Coolant entry style code): 1
NOF (GTC – Cutting edge count): 1
S (GTC – Insert thickness, Pos. B): 2.38 mm
L (GTC – Cutting edge length, Pos. B): 5.1 mm
IC (GTC – Inscribed circle diameter, Pos. B): 5.9 mm
AN (GTC – Clearance angle major, Pos. B): 7 Degree
BD (GTC – Body diameter 1st step): 12.6 mm
DC (GTC – Cutting diameter minimum): 13.5 mm
Shank diameter (DCON): 20
DCON (GTC – Connection diameter machine side): 20 mm
FLGT (GTC – Length bond): 23.55 mm
Collar diameter (DCSFMS): 27
DF (GTC – Flange diameter): 27 mm
LU (GTC – Usable length): 40.5 mm
LS (GTC – Shank length): 43 mm
Head length (LFS): 65
OHX (GTC – Protruding length): 65 mm
EPSR (GTC – Cutting edge angle major, Pos. B): 87 Degree
Total length (OAL): 108
OAL (GTC – Overall length): 108 mm
SIG (GTC – Point angle 1st step): 166 Degree
CZCMS (GTC – Connection size code machine side): 200
Drilling depth (Rdd): 3XD
Drilling depth (LU): 40,5
Diameter (DC): ø13,50
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
Internal coolant: Yes
MIID (GTC – Master insert identification, inside cutting edge, 1st step): ZCMT050203
