Niska cena Carbide Turning Insert – CCGT030101MP-CF PR1225

Opis

Opis:

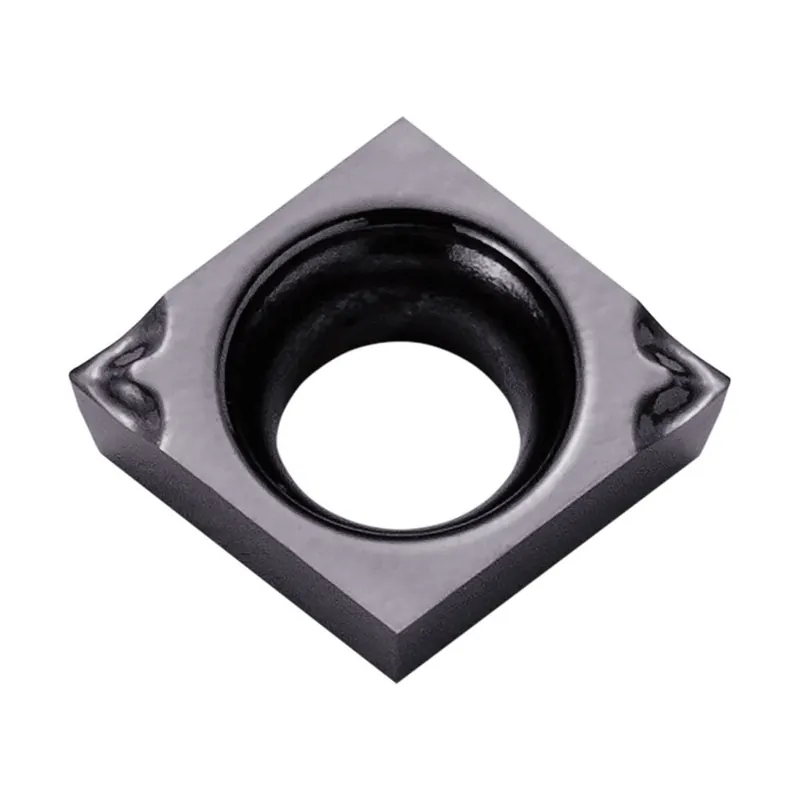

Carbide Turning Insert CCGT030101MP-CF PR1225

Cecha szcz.:

RE (GTC – Corner radius): 0.1 mm
Corner radius (RE): 1
S (GTC – Insert thickness): 1.4 mm
LE (GTC – Cutting edge effective length): 1.5 mm
IFS (GTC – Insert mounting style code): 3
IC (GTC – Inscribed circle diameter): 3.5 mm
L (GTC – Cutting edge length): 3.554 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 301
Description: CCGT
TC (GTC – Tolerance class insert): G
COATING (GTC – Coating): MEGACOAT
Chip breaker: MP-CF
HAND (GTC – Insert hand): N
Grade: PR1225
