Oferta limitowana Carbide Turning Insert – CCGT060201ER-U PR930

Opis

Opis:

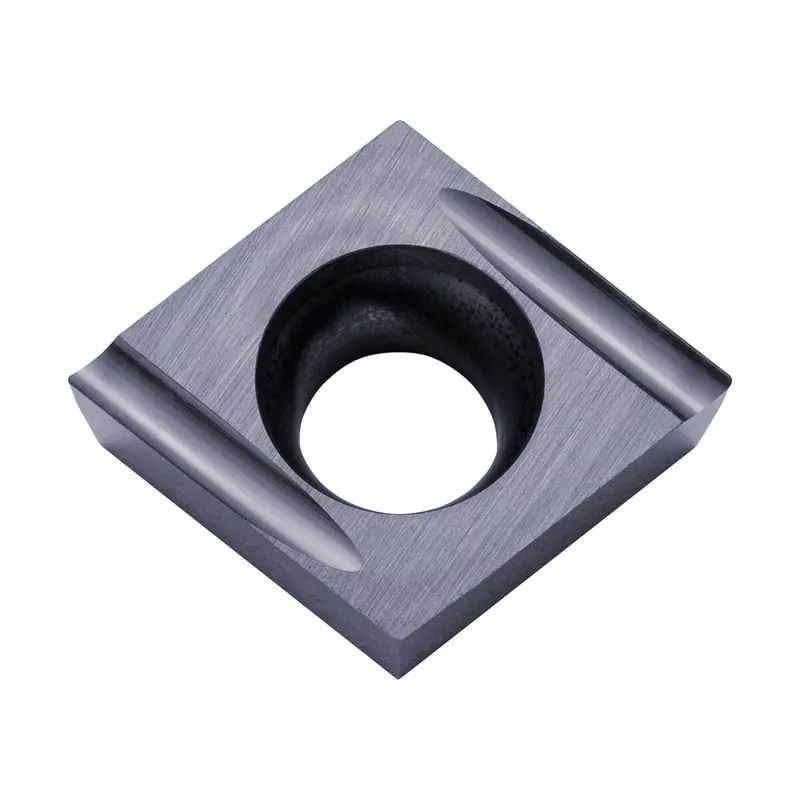

Carbide Turning Insert CCGT060201ER-U PR930

Cecha szcz.:

RE (GTC – Corner radius): 0.1 mm
Corner radius (RE): 1
S (GTC – Insert thickness): 2.38 mm
IFS (GTC – Insert mounting style code): 3
LE (GTC – Cutting edge effective length): 3 mm
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 6.448 mm
AN (GTC – Clearance angle major): 7 Degree
EPSR (GTC – Insert included angle): 80 Degree
Size: 602
Description: CCGT
Chip breaker: ER-U
TC (GTC – Tolerance class insert): G
Grade: PR930
COATING (GTC – Coating): PVD Coated Carbide
HAND (GTC – Insert hand): R
