PCD Grooving Insert – GVFR250-020B KPD010 Dostępne od ręki

Opis

Opis:

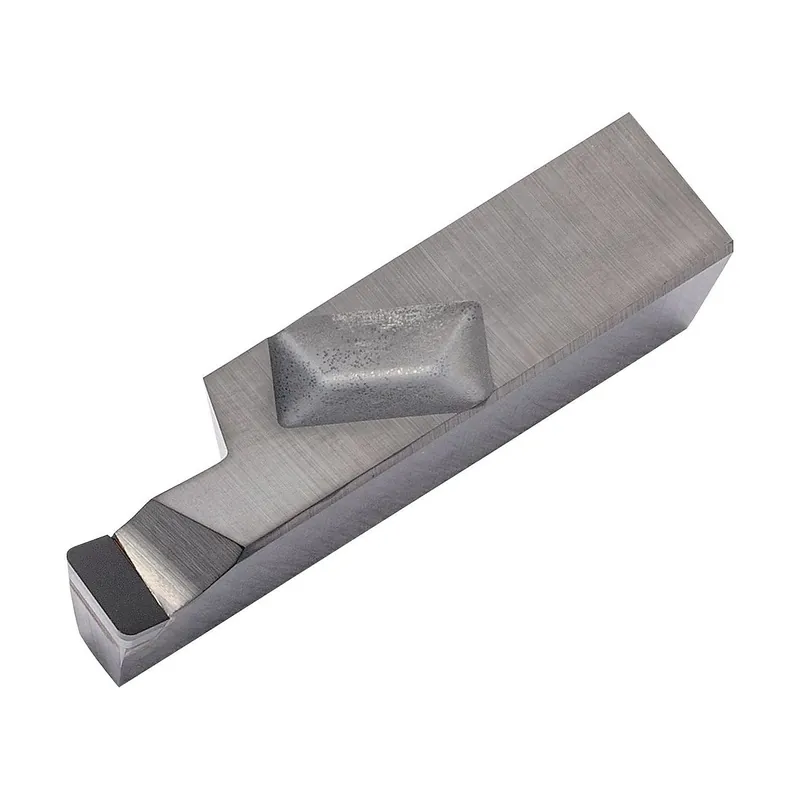

PCD Grooving Insert GVFR250-020B KPD010

Cecha szcz.:

WT (GTC – Weight of item): 0.004 kg
REL (GTC – Corner radius left hand): 0.2 mm
RER (GTC – Corner radius right hand): 0.2 mm
CEDC (GTC – Flute count): 1
PFS (GTC – Profile form): 1
CW (GTC – Cutting width): 2.5 mm
S (GTC – Insert thickness): 4.3 mm
S1 (GTC – Insert thickness total): 5 mm
ANR (GTC – Clearance angle flank right hand): 6 Degree
AN (GTC – Clearance angle major): 6 Degree
ANL (GTC – Clearance angle flank left hand): 6 Degree
INSL (GTC – Insert length): 20 mm
Grooving width: 2,50
CECC (GTC – Cutting edge condition code): F
Description: GVF
Grade: KPD010
HAND (GTC – Insert hand): R
TCE (GTC – Tipped cutting edge code): S
