PCD Turning Insert – TPMH110301SE KPD010 Taniej

Opis

Opis:

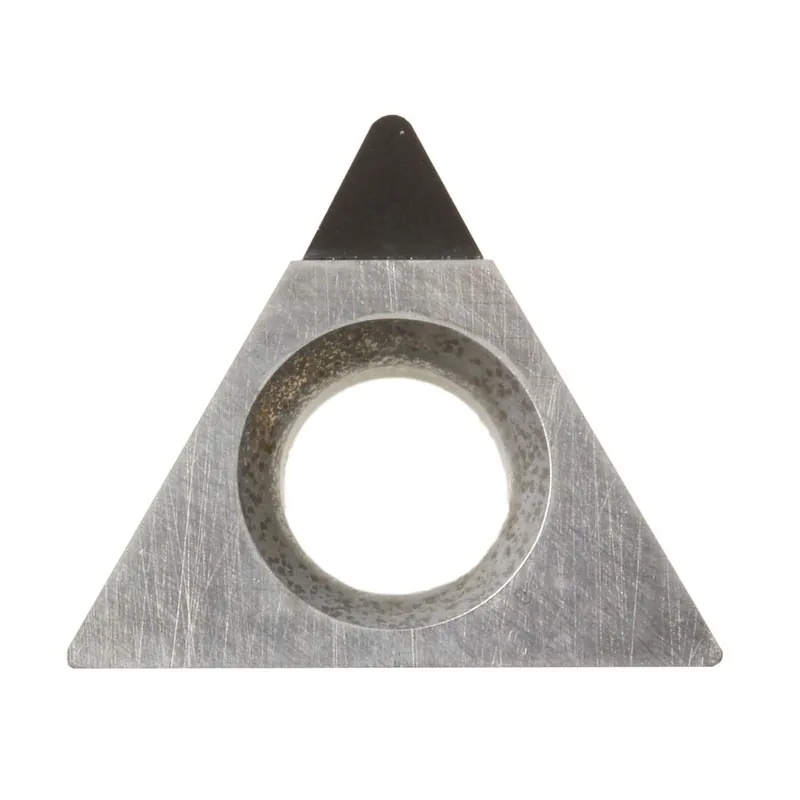

PCD Turning Insert TPMH110301SE KPD010

Cecha szcz.:

RE (GTC – Corner radius): 0.1 mm
Corner radius (RE): 1
LE (GTC – Cutting edge effective length): 2.7 mm
S (GTC – Insert thickness): 3.18 mm
IFS (GTC – Insert mounting style code): 4
IC (GTC – Inscribed circle diameter): 6.35 mm
L (GTC – Cutting edge length): 10.998 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 60 Degree
Size: 1103
TCE (GTC – Tipped cutting edge code): A
Grade: KPD010
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Chip breaker: SE
Description: TPMH
