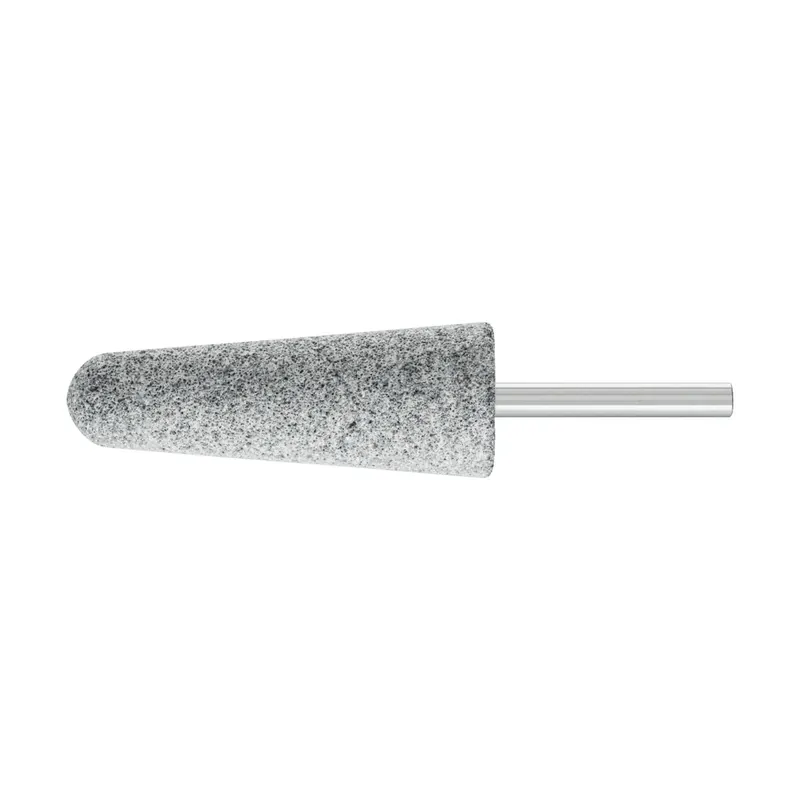

PFERD TOOLS CAST EDGE mounted point shape A 3 dia. 25×70 mm shank dia. 6 mm SIC30 for grey and nodular cast iron Bezpieczne zakupy

Opis

Opis:

• Series A mounted points are generally used on larger components.
• Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours.
• The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing.
• The CAST EDGE type is particularly well-suited to edge grinding and for grinding away sand contamination and metal contamination on grey and nodular cast iron in conjunction with high cutting speeds.
• Its main applications include removal of sharp burrs and grinding out sand contamination and metal contamination on cast material parts.

Cecha szcz.:

• Max. RPM: 18600 RPM
• RPM, optimum: 18600 RPM
• Shape: A 3
• Width, metric: 70 mm
• Dia. external, metric: 25 mm
• Dia. shank, metric: 6 mm
• Grit size: 30
• Length, shank: 40

Zastosowanie:

• Recommendations for use: CAST EDGE mounted points perform best at a cutting speed of 30 to 50 m/s.
• Applications: Deburring; Finishing; Grinding out; Grouting; Leveling; Surface work; Work on weld seams; Working on edges (chamfering, rounding)
• Drive types: Flexible shaft drive; Straight grinder

Materiał:

• Materials that can be worked:
  • Annealed cast iron
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Materials that can be worked: Annealed cast iron; Grey/nodular cast iron (GG/GJL, GGG/GJS)
