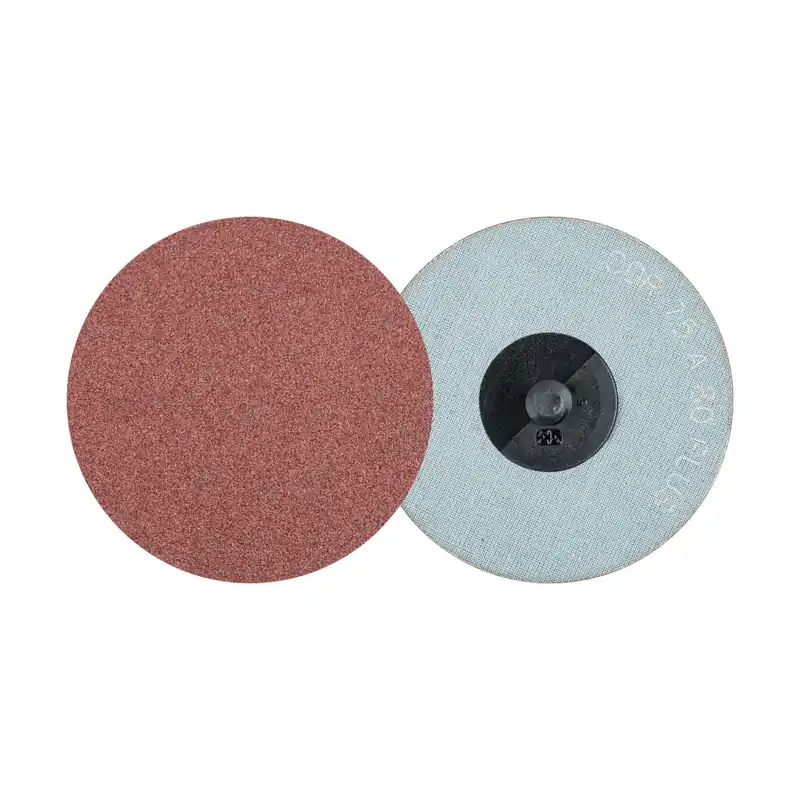

PFERD TOOLS COMBIDISC aluminium oxide abrasive disc CDR dia. 75 mm A80 PLUS for robust applications Tylko dziś

Opis

Opis:

• For general applications from coarse to fine grinding.
• Higher stock removal rate due to sturdy backing material.
• Particularly for use in edge grinding due to high tear strength.
• The CDR clamping system has a threaded connection with male thread (plastic) on the tool side.
• Also suitable for the following commonly used systems: Roloc™, Lockit, Speed Lok TR, Power Lock Type III, Fastlock-System B, Roll-On.
• PFERD TOOLS ERGONOMICS recommends COMBIDISC as an innovative tool solution to sustainably reduce the vibration, noise and dust produced during use and to improve comfort when working.
• PFERD TOOLS EFFICIENCY recommends COMBIDISC tools to reduce tool changing and setting-up time.

Cecha szcz.:

• Clamping system: CDR system
• RPM, optimum, from: 5000 RPM
• RPM, optimum, to: 9000 RPM
• Abrasive: Aluminium oxide A-PLUS
• Dia. external, metric: 75 mm
• Grit size: 80

Zaleta:

• High economic efficiency as tool can be changed quickly.
• Very comfortable due to ease of use and low-vibration working.
• No disruptions in use due to adhesion, slipping or coming loose.

Zastosowanie:

• Recommendations for use: Use COMBIDISC abrasive discs with an abrasive disc holder on flexible shaft drives with an angle handpiece, or small compressed-air or electric angle grinders. Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
• Applications: Deburring; Step-by-step fine grinding; Leveling; Roughening; Sharpening; Surface work; Work on weld seams; Working on edges
• Drive types: Angle grinder; Cordless angle grinder; Flexible shaft drive; Straight grinder

Materiał:

• Materials that can be worked:
  • Annealed cast iron
  • Brass
  • Bronze
  • Cast steel
  • Copper
  • Fibre-reinforced thermosetting plastics (GRP, CRP)
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Thermoplastics
  • Titanium
  • Titanium alloys
  • Materials that can be worked: Annealed cast iron; Brass; Bronze; Cast steel; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Titanium; Titanium alloys

  W dostawie:

  • Please order abrasive disc holder separately.
