Popularny Carbide Turning Insert – WNMG080404C CA4505

Opis

Opis:

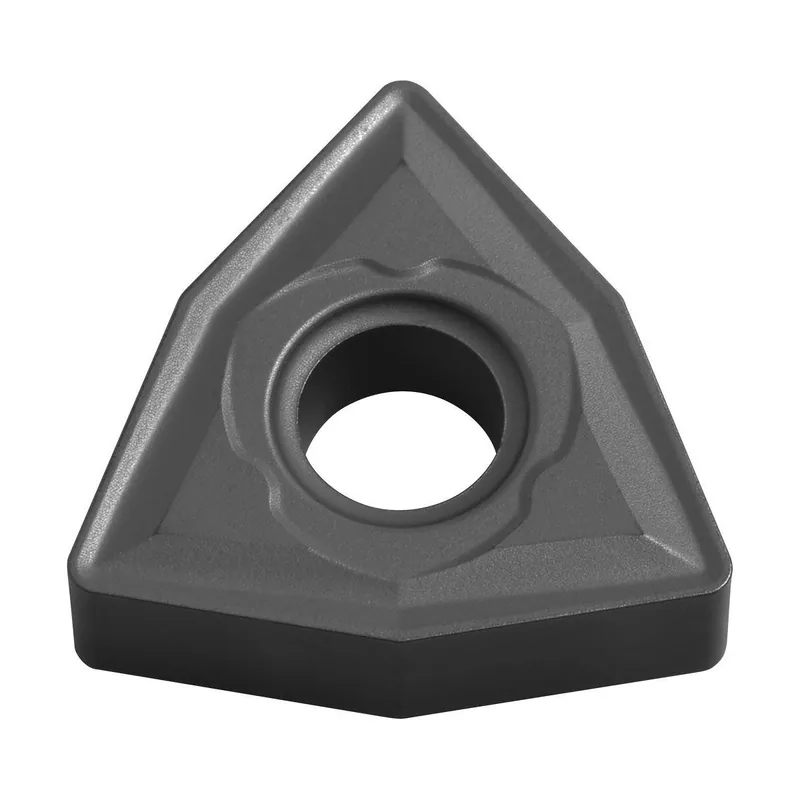

Carbide Turning Insert WNMG080404C CA4505

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.4 mm
IFS (GTC – Insert mounting style code): 2
Corner radius (RE): 4
S (GTC – Insert thickness): 4.76 mm
L (GTC – Cutting edge length): 8.687 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
EPSR (GTC – Insert included angle): 80 Degree
Size: 804
Chip breaker: C
Grade: CA4505
COATING (GTC – Coating): CVD Coated Carbide
TC (GTC – Tolerance class insert): M
HAND (GTC – Insert hand): N
Description: WNMG
