Promocja Carbide Turning Insert – DPET11T301FL-USF PR930

Opis

Opis:

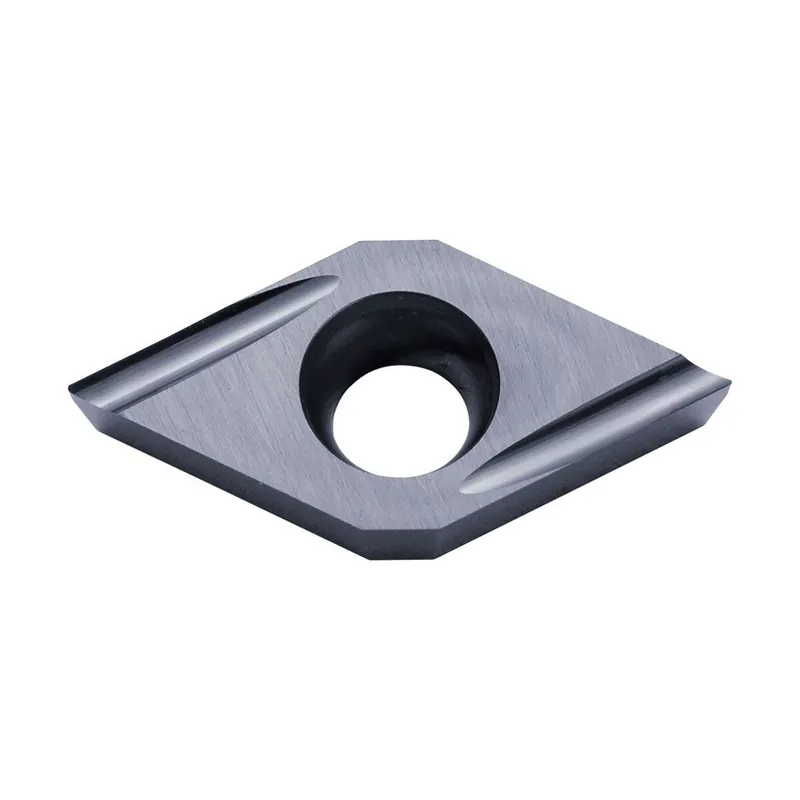

Carbide Turning Insert DPET11T301FL-USF PR930

Cecha szcz.:

RE (GTC – Corner radius): 0.1 mm
Corner radius (RE): 1
IFS (GTC – Insert mounting style code): 3
S (GTC – Insert thickness): 3.97 mm
LE (GTC – Cutting edge effective length): 4.5 mm
IC (GTC – Inscribed circle diameter): 9.525 mm
AN (GTC – Clearance angle major): 11 Degree
L (GTC – Cutting edge length): 11.628 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 11T3
Description: DPET
TC (GTC – Tolerance class insert): E
Chip breaker: FL-USF
HAND (GTC – Insert hand): L
Grade: PR930
COATING (GTC – Coating): PVD Coated Carbide
