Super okazja PCD Turning Insert – DNMM150402M-NE KPD001

Opis

Opis:

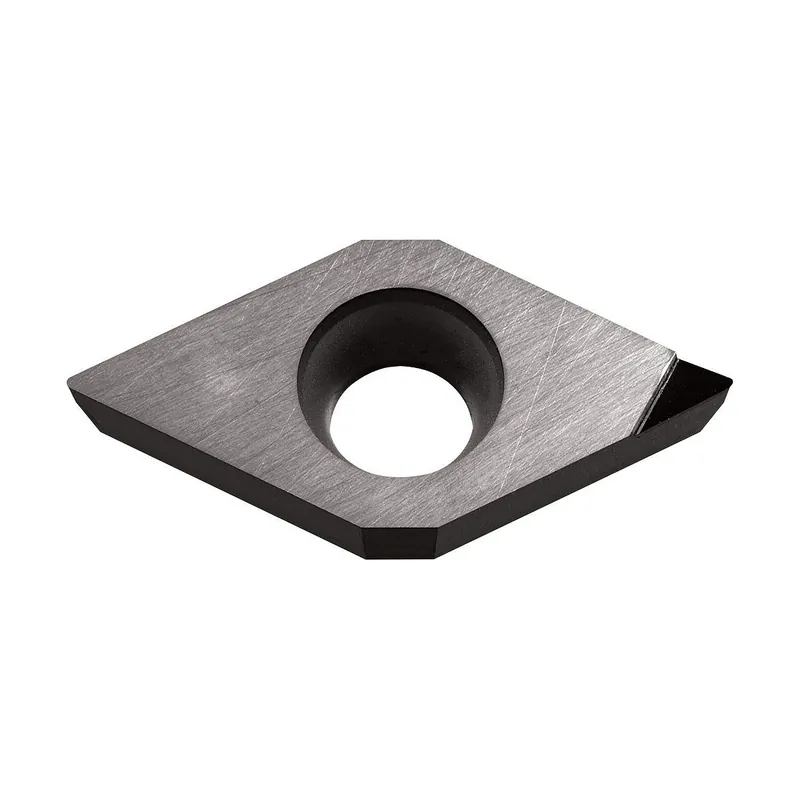

PCD Turning Insert DNMM150402M-NE KPD001

Cecha szcz.:

AN (GTC – Clearance angle major): 0 Degree
RE (GTC – Corner radius): 0.2 mm
Corner radius (RE): 2
IFS (GTC – Insert mounting style code): 2
S (GTC – Insert thickness): 4.76 mm
LE (GTC – Cutting edge effective length): 5.2 mm
IC (GTC – Inscribed circle diameter): 12.7 mm
L (GTC – Cutting edge length): 15.504 mm
EPSR (GTC – Insert included angle): 55 Degree
Size: 1504
TCE (GTC – Tipped cutting edge code): A
Description: DNMM
Grade: KPD001
TC (GTC – Tolerance class insert): M
Chip breaker: M-NE
HAND (GTC – Insert hand): N
