Szybka wysyłka Milling Toolholder – MECH040-S42-11-6-4T

Opis

Opis:

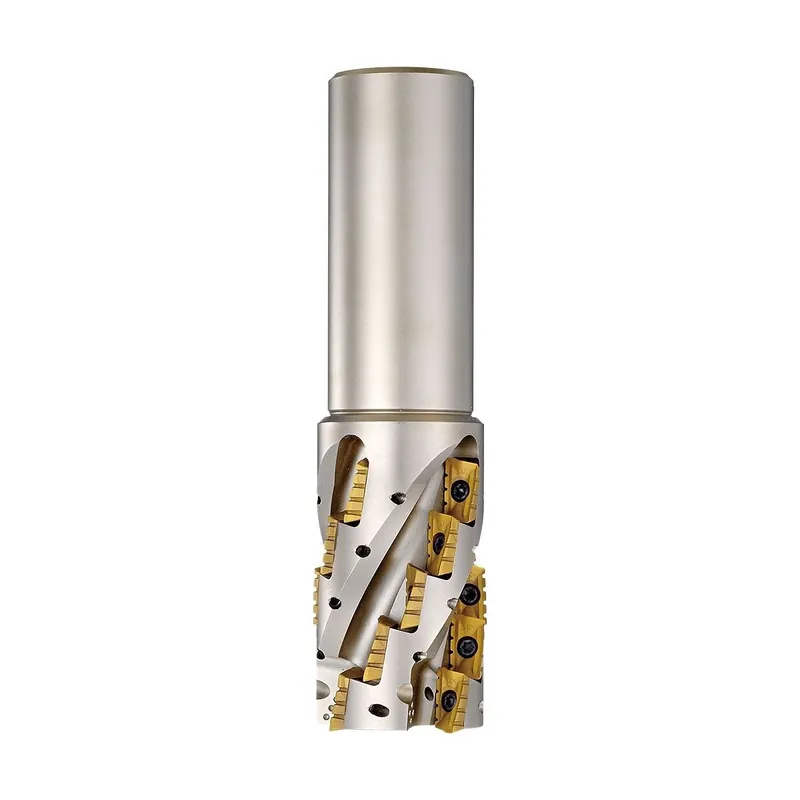

Milling Toolholder MECH040-S42-11-6-4T

Cecha szcz.:

RE (GTC – Corner radius, Pos. A): 0.8 mm
CNSC (GTC – Coolant entry style code): 1
WT (GTC – Weight of item): 1.476 kg
CXSC (GTC – Coolant exit style code): 3
S (GTC – Insert thickness, Pos. A): 3.8 mm
ZEFF (GTC – Face effective cutting edge count): 4
ZEFP (GTC – Peripheral effective cutting edge count): 4
IC (GTC – Inscribed circle diameter, Pos. A): 6.3 mm
W1 (GTC – Insert width, Pos. A): 6.3 mm
L (GTC – Cutting edge length, Pos. A): 11 mm
AN (GTC – Clearance angle major, Pos. A): 15 Degree
Number of inserts: 24
BD (GTC – Body diameter): 38.1 mm
DC (GTC – Cutting diameter): 40 mm
Shank diameter (DCON): 42
DCON (GTC – Connection diameter machine side): 42 mm
Cutting length (APMX): 55
APMX (GTC – Depth of cut maximum): 55 mm
LU (GTC – Usable length): 60 mm
OHX (GTC – Protruding length): 69 mm
EPSR (GTC – Cutting edge angle major, Pos. A): 80 Degree
Cutting angle: 90
KAPR (GTC – Tool cutting edge angle): 90 Degree
LS (GTC – Shank length): 96 mm
Total length (OAL): 160
LF (GTC – Functional length): 160 mm
OAL (GTC – Overall length): 160 mm
CZCMS (GTC – Connection size code machine side): 420
RPMX (GTC – Rotational speed maximum): 21000 1/min
Insert size: 11T
MIID (GTC – Master insert identification, position B): BDMT11T308ER-N3
Shank type: Cylindrical
TCDCON (GTC – ISO-tolerance class connection bore diameter machine side): h7
Diameter (DC): ø40
HAND (GTC – Cutting direction): R
BMC (GTC – Body material code): S
Internal coolant: Yes
