Taniej Ceramic Turning Insert – TPGN090208T00820 PT600M

Opis

Opis:

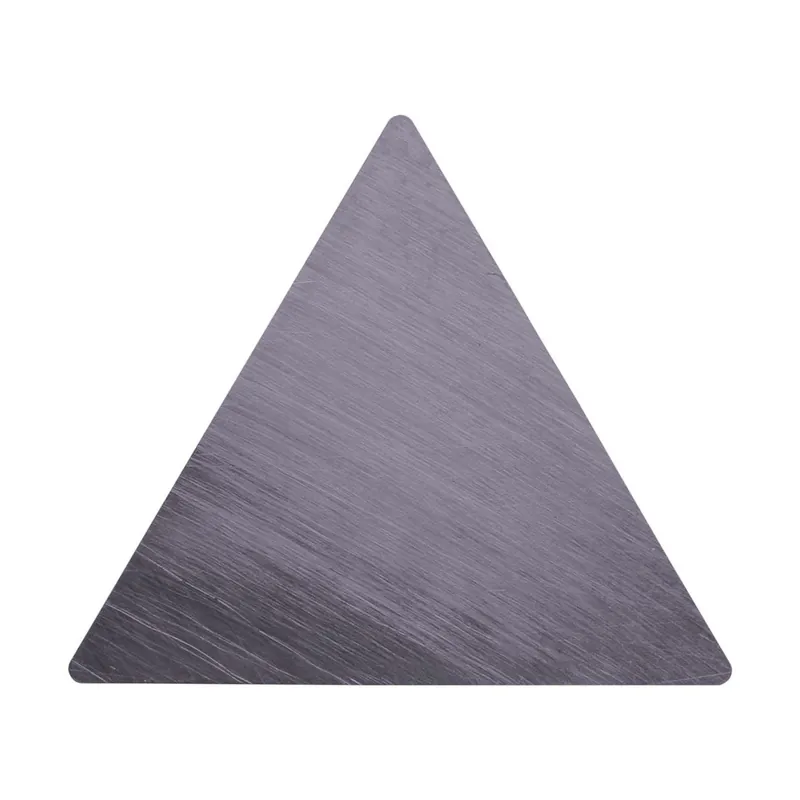

Ceramic Turning Insert TPGN090208T00820 PT600M

Cecha szcz.:

RE (GTC – Corner radius): 0.8 mm
IFS (GTC – Insert mounting style code): 1
S (GTC – Insert thickness): 2.38 mm
IC (GTC – Inscribed circle diameter): 5.56 mm
Corner radius (RE): 8
L (GTC – Cutting edge length): 9.63 mm
AN (GTC – Clearance angle major): 11 Degree
EPSR (GTC – Insert included angle): 60 Degree
Size: 902
TC (GTC – Tolerance class insert): G
COATING (GTC – Coating): MEGACOAT Ceramic
HAND (GTC – Insert hand): N
Grade: PT600M
Chip breaker: T00820
Description: TPGN
